How To Get A Quote?
To provide accurate prices, the following information is required.
What is the max dimension of workpiece you coat? (L× W× H), it is better to send us the pictures of your workpiece or drawings.
What is your expected output per hour?
What is the heat source type you will use? electricity, gas or diesel?
What type of coating material do you use? PE, PVC, Nylon or any others?
Which type do you need? Manul, semi-automatic or full-automatic type?
PECOAT® fluidized bed powder coating equipment includes three types: full-automatic, semi-automatic and manual, and can be customized according to customers’ requirements. Parameters such as the size, power and output capacity of the equipment all depend on the customers’ coating processes and relevant requirements. With years of successful design and production experience, PECOAT® is committed to providing medium – scale customers who expect to purchase high quality equipment at a good price with a cost-effective fluidized bed system.
Constituent Parts

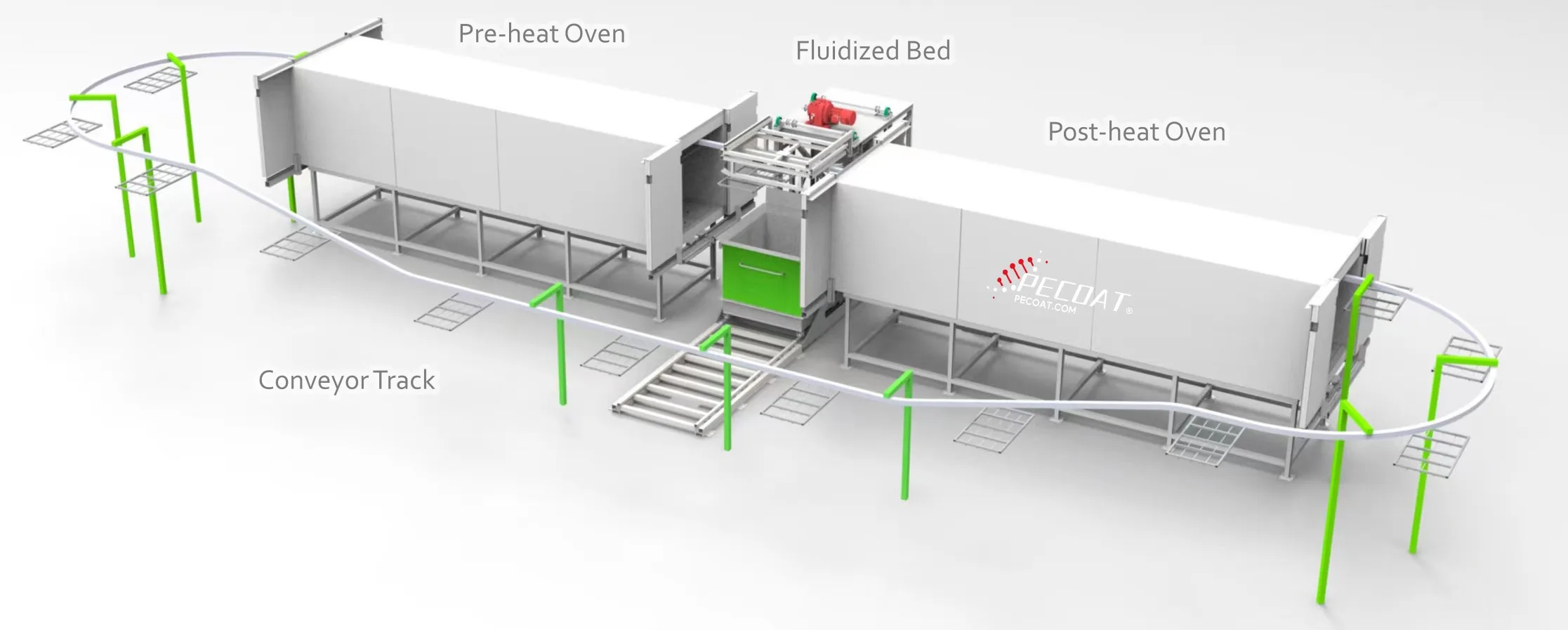

A complete fluidized bed powder coating equipment system consists of the following constituent parts:
Pre-heating Oven: Pre-heating oven aims to preheat the workpiece to required temperature. It is usually max 450℃.

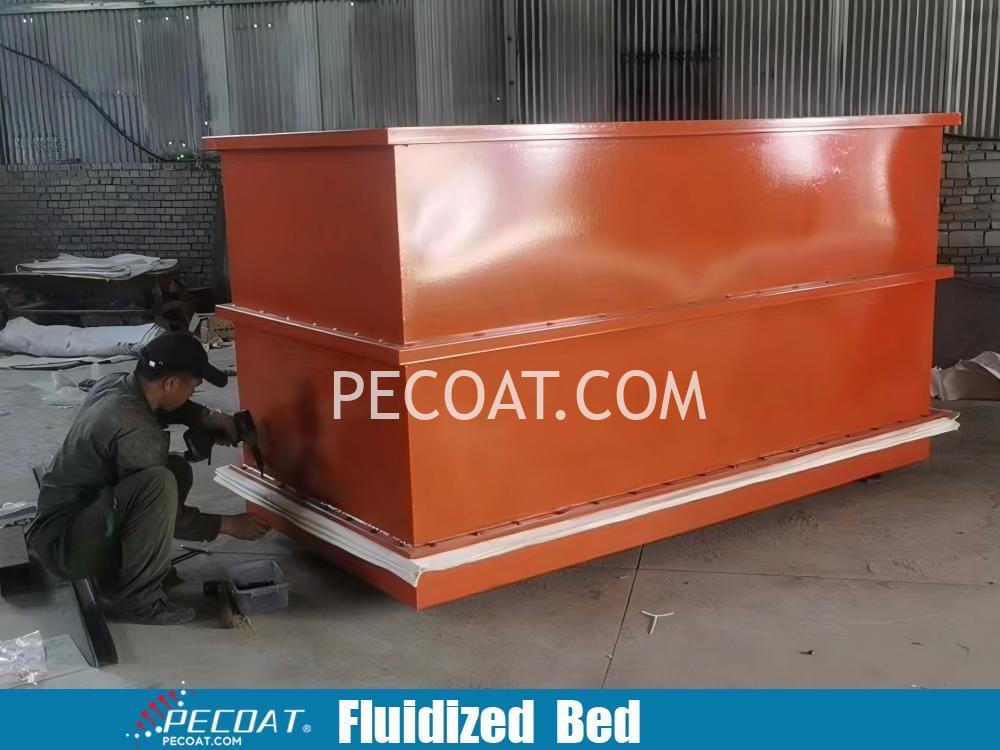

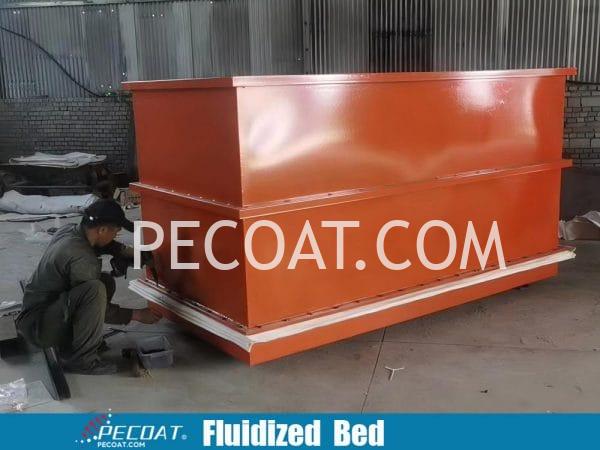

Fluidized Bed System: This system is composed of powder tank, blower, vibration system and lift system. This system aims to fluidize the powder like “boiled”, and ensure the stability and high efficiency of dipping process, and uniformity of the coating thickness.
Post-heating Oven: This post-heating process cure the powder to be a hard and uniform coatings at a temperature 180- 250℃.
Conveyor Track: This system conveys the workpiece in the whole process of uploading, heating, dipping powder, and final downloading. Semi-automatic line usually uses double track, and full automatic line use single track.
Control System: This system controls the stable operation of the entire system, such as heating, powder dipping, conveyor track speed,etc.
PECOAT® fluidized bed equipment has three types: manual type, semi-automatic type and fully-automatic type. Due to high labor cost and low efficiency, the manual type is rarely used. The semi-automatic type is more popular because of its high cost-performance ratio. The fully-automatic type has the highest efficiency but is the most expensive. Which type to choose depends on your requirements, such as the desired production output capacity, cost budget, etc.
Manual Type
Manual type consists of preheat oven, fluidized bed, post-heat oven and the foot track. All operations are manual.

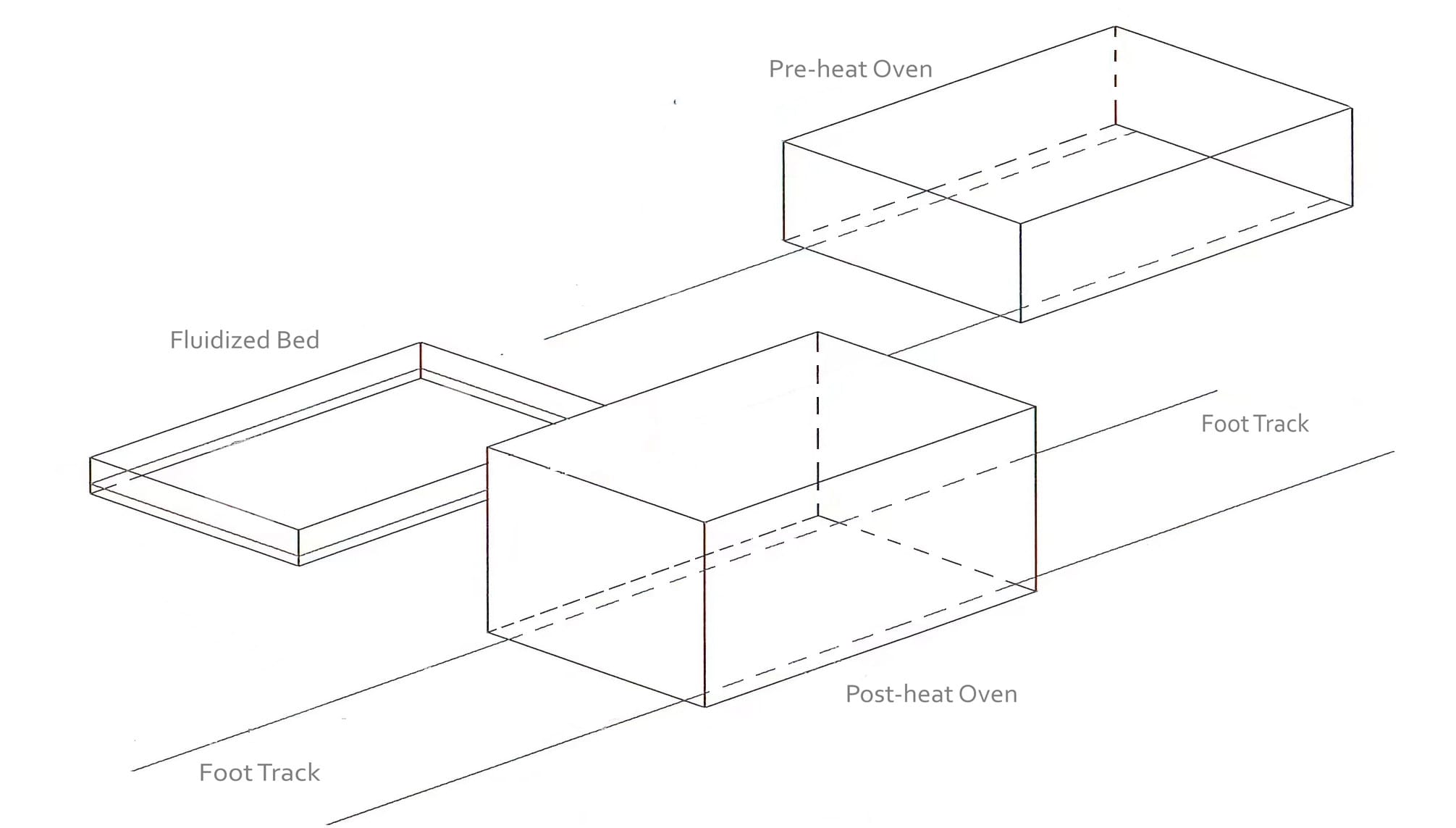

Plane Schematic Diagram of Manual Type Fluidized Bed Dip Coating Equipment
Case Show
«
Prev
1
/
1
Next
»
full manual fluidized bed dip powder coating process for guard railing, Powder Supplier PECOAT.COM
Outdoor fence production with fluidized bed dipping powder coating #thermoplasticpowdercoating
Thermoplastic powder full manual fluidized bed dipping coating for wire fence #thermoplasticpowder
Due to high labor cost and low efficiency, the manual type is rarely used. The semi-automatic type is more popular because of its high cost-performance ratio. The fully-automatic type has the highest efficiency but is the most expensive. Which type to choose depends on your requirements, such as the desired production output capacity, cost budget, etc.

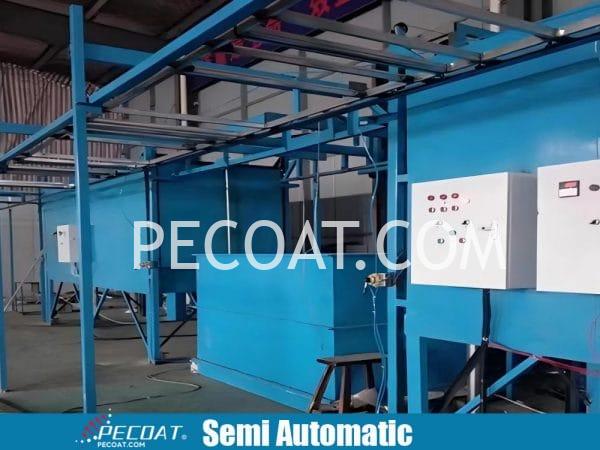

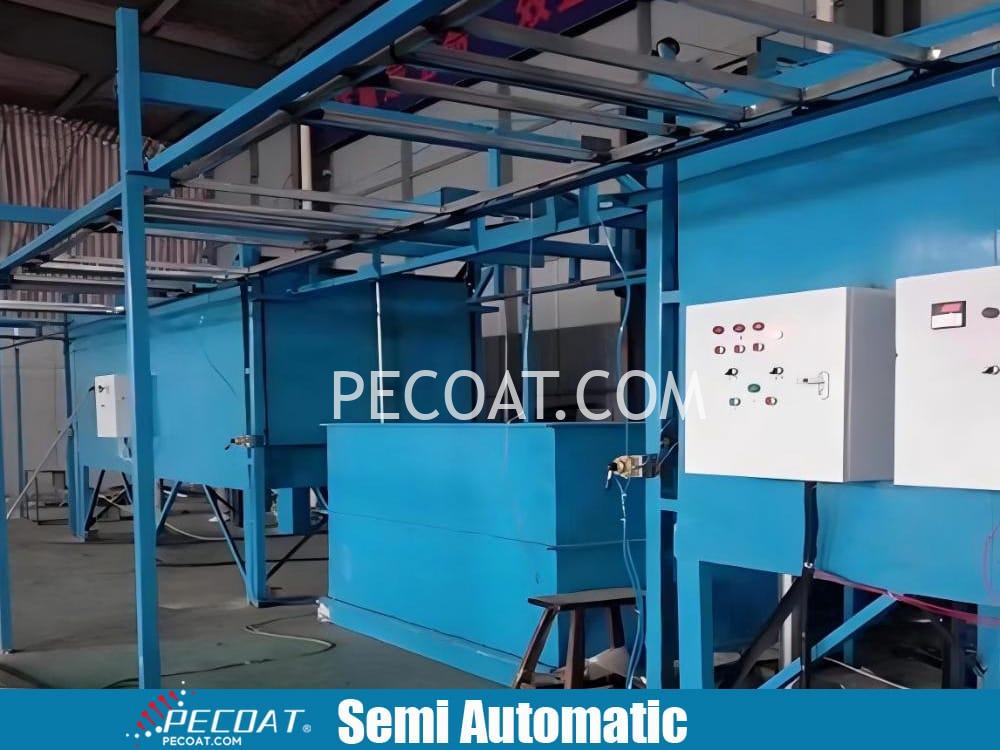

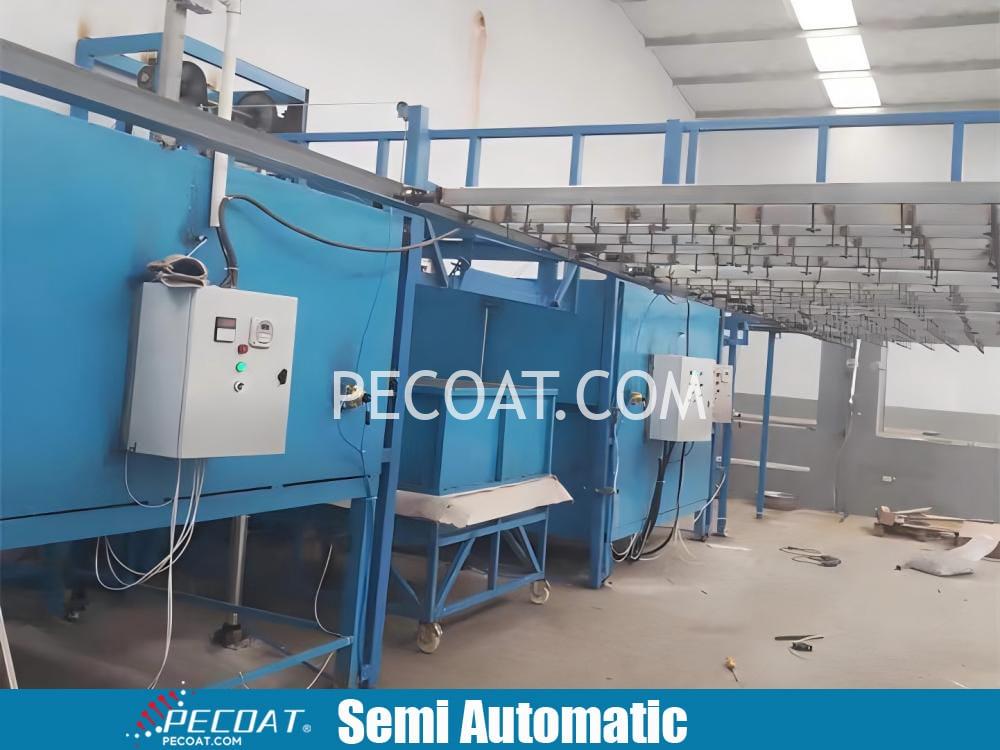

Semi-Automatic Type
The semi-automatic type consists of pre-heat oven, fluidized bed, lift system, post-heat oven, conveyor loop track (double track), hanging tray, turnover cart (optional). The conveyor track is pushed by manual through the whole process.

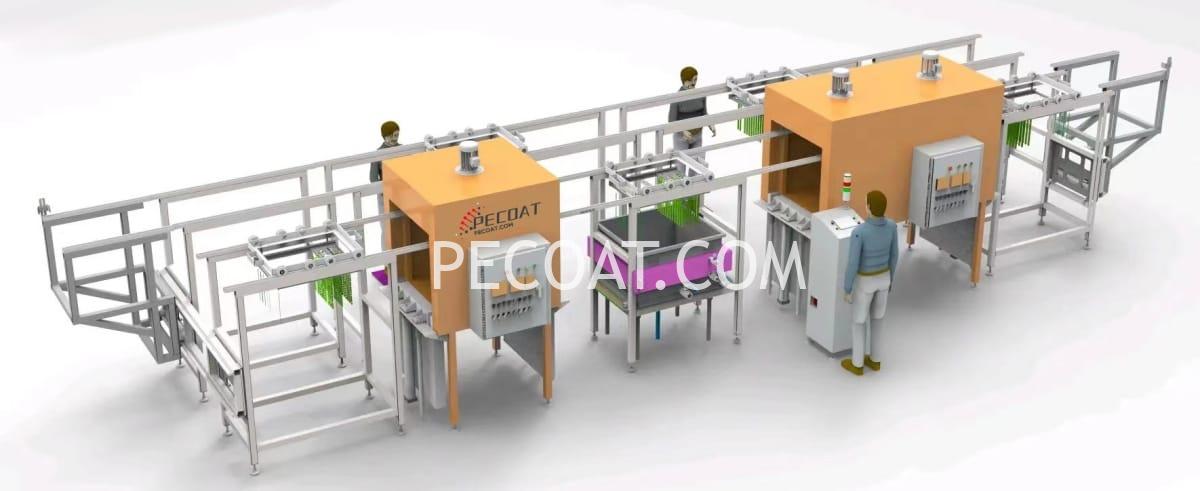

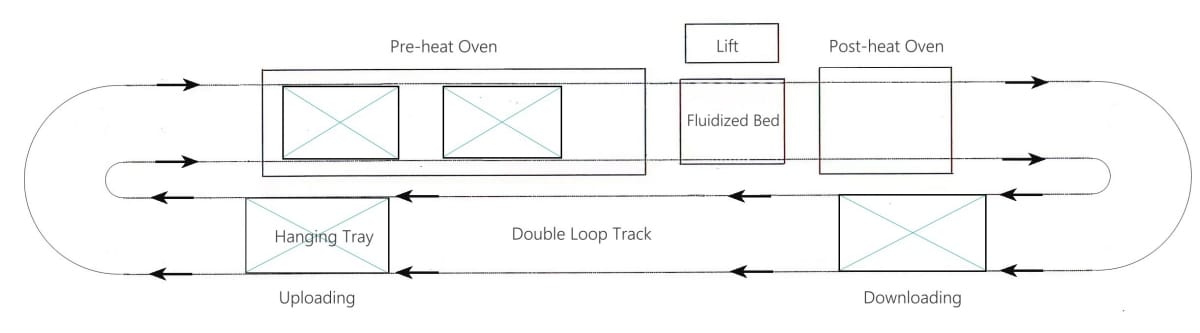

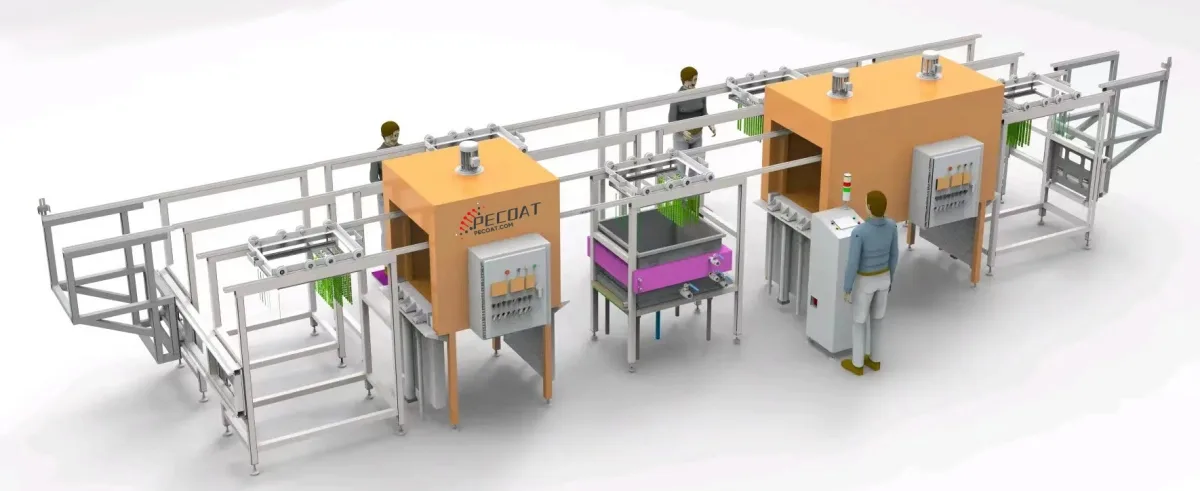

Plane Schematic Diagram of Semi-Automatic Type3D Schematic Diagram for Semi-Automatic Type
Semi-automatic vertical fluidized bed dip powder coating line for guardrail wire mesh - pecoat.com

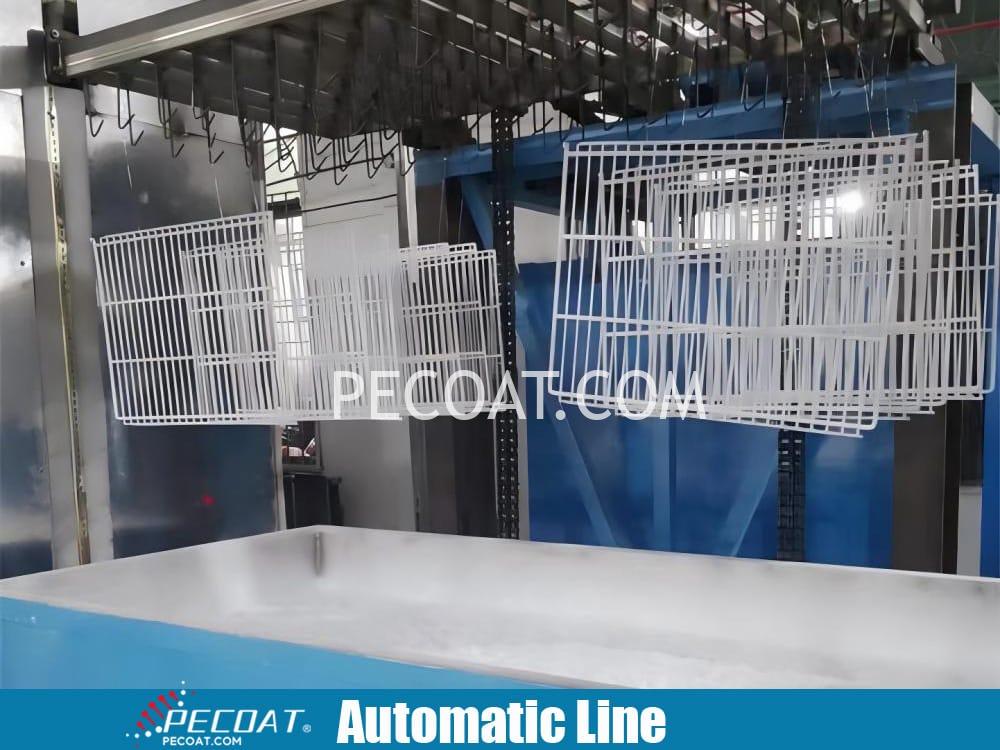

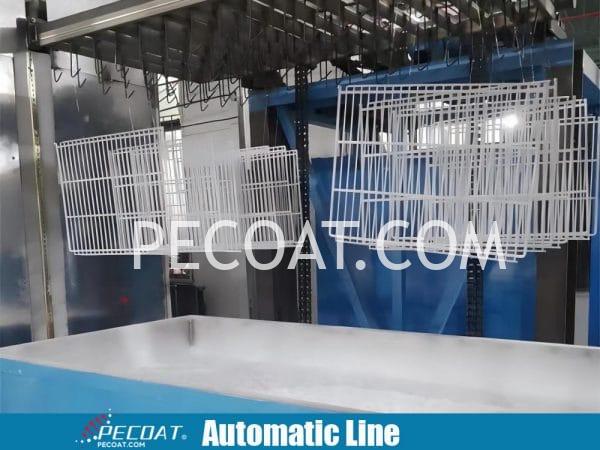

semi-automatic dip powder coating bed thermoplastic powder coating line for refrigerator shelves
Thermoplastic Fluidized Bed Dip Powder Coating for Metals,Semi Automatic Fluid Bed Line
Semi Automatic Thermoplastic Powder Coating Machine Dip Coating Line Immersion Process - PECOAT.COM
Semi Automatic Dip Plastic Coating Line for PVC PE Nylon Thermoplastic Powder Coatings PECOAT.COM
Semi automatic fluidized bed dipping coating equipment from china supplier
Semi automatic fluidized bed coating equipment from china supplier
«
Prev
1
/
1
Next
»
Due to high labor cost and low efficiency, the manual type is rarely used. The semi-automatic type is more popular because of its high cost-performance ratio. The fully-automatic type has the highest efficiency but is the most expensive. Which type to choose depends on your requirements, such as the desired production output capacity, cost budget, etc.

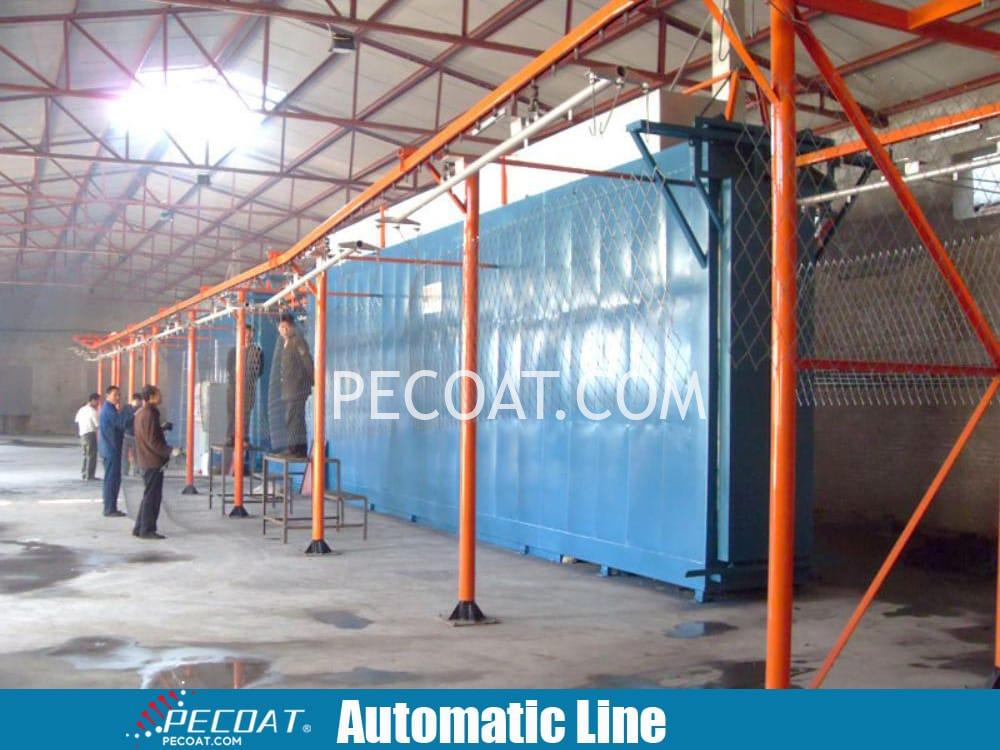

Full-Automatic Type

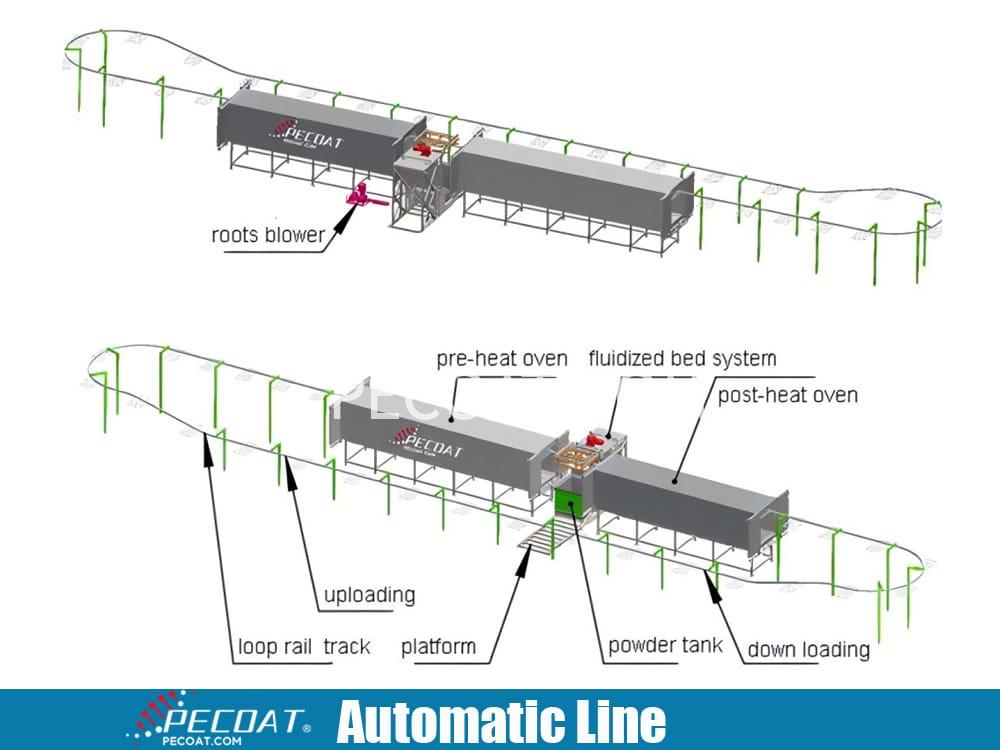

The full-automatic type consists of pre-heat oven, fluidized bed, lift system, post-heat oven, conveyor loop track ( single track ), hanging tray. The conveyor track is powered by motor throughout the whole process.

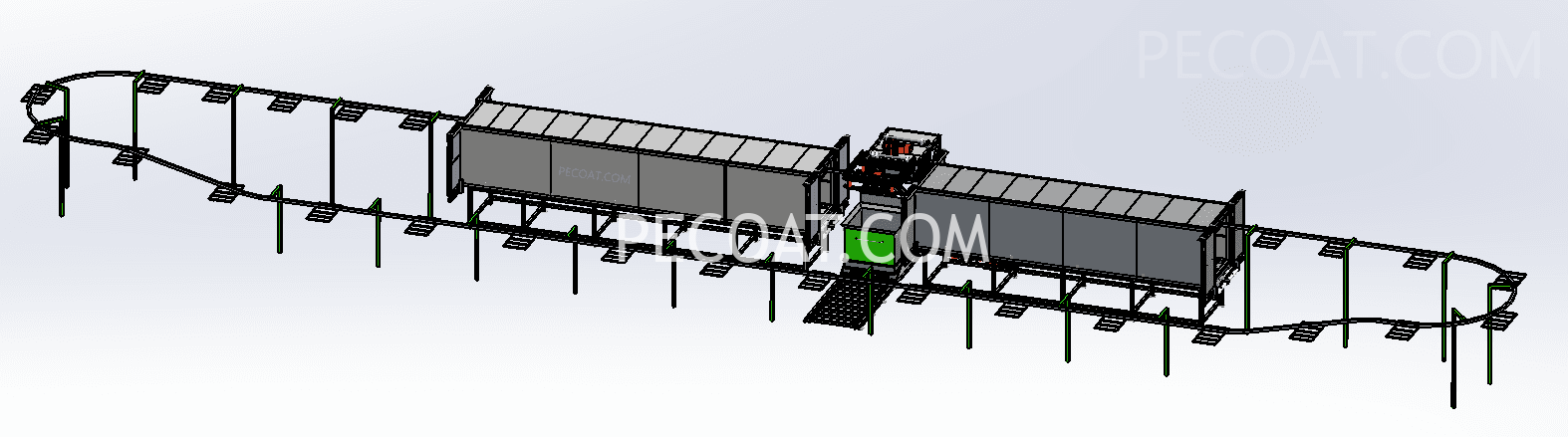

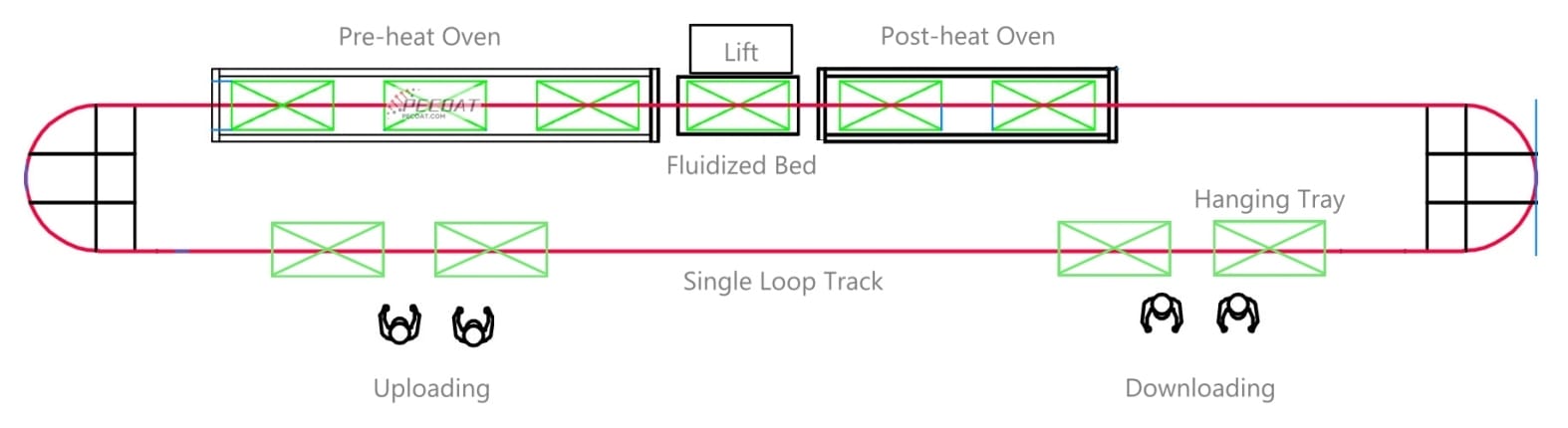

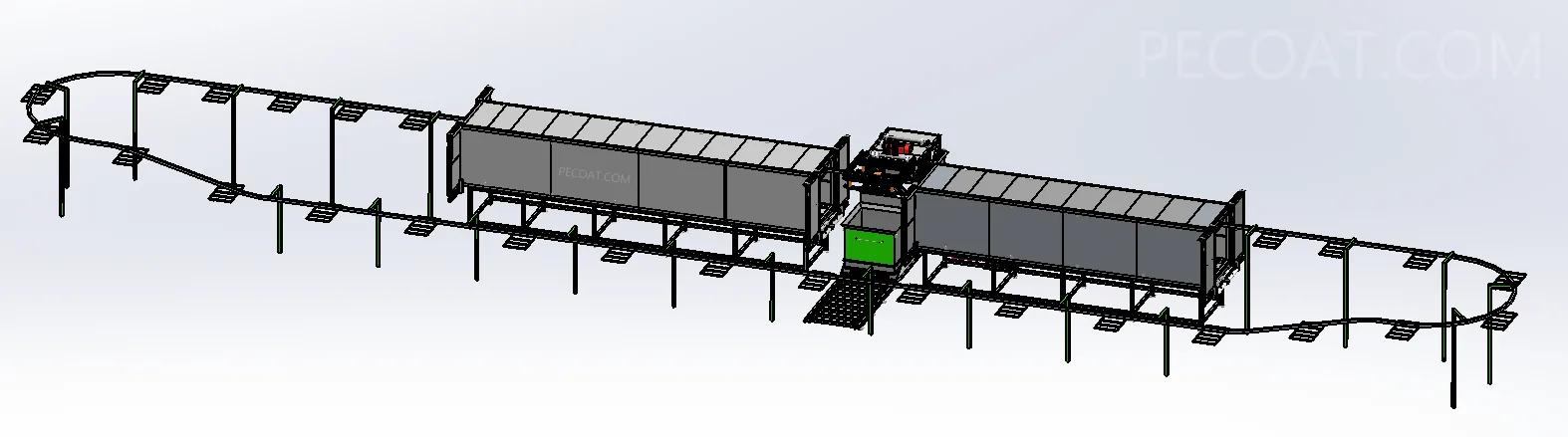

Plane Schematic Diagram of Full-Automatic3D Schematic Diagram for Full-Automatic Type
Case Show
«
Prev
1
/
1
Next
»
Customized fluidized bed dip coating line with upturn chain straight Line type - pecoat.com
Full automatic dip powder coating fluidized bed equipment, customized coating line for wire fence.

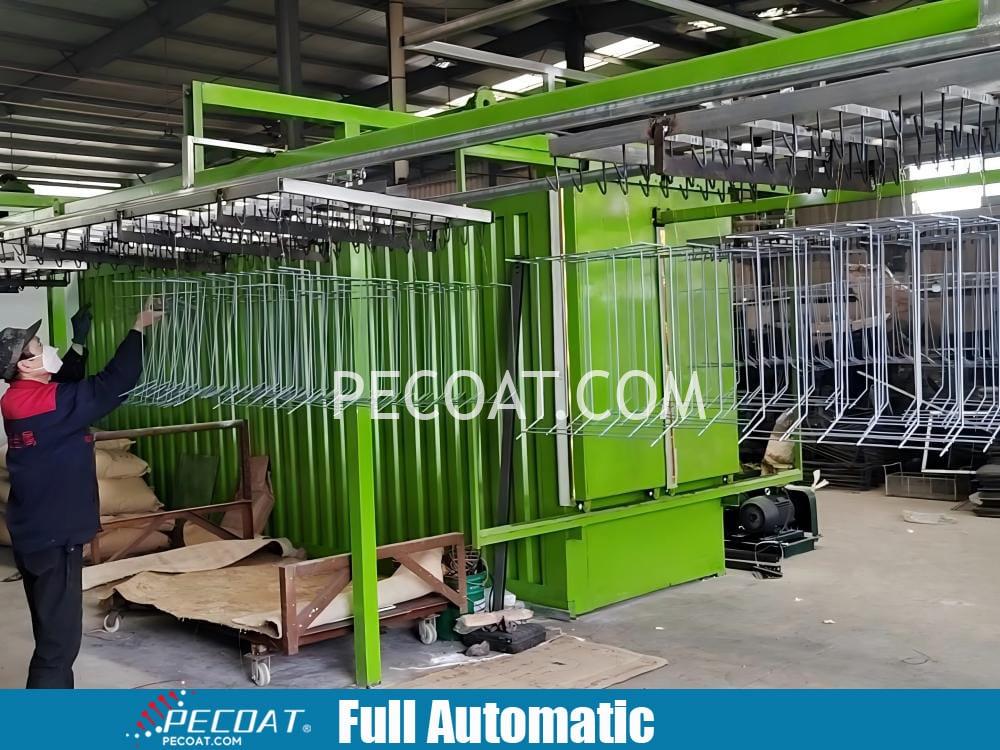

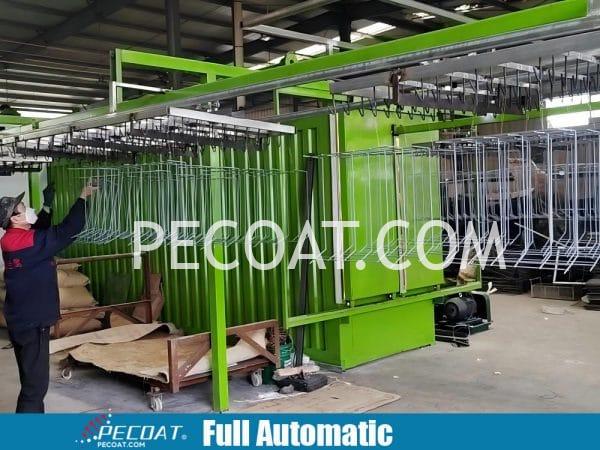

Automatic Fluidized Bed Dip Coating Equipment for metal wire shelves racks - pecoat.com
Automatic dip powder coating line fluid bed supplier
Automatic fluidized bed powder coating dipping line from china supplier
Automatic fluidized bed dipping line from China Supplier
Automatic Fluid Bed Dip Coating Equipment from China Supplier
«
Prev
1
/
1
Next
»
Please contact us

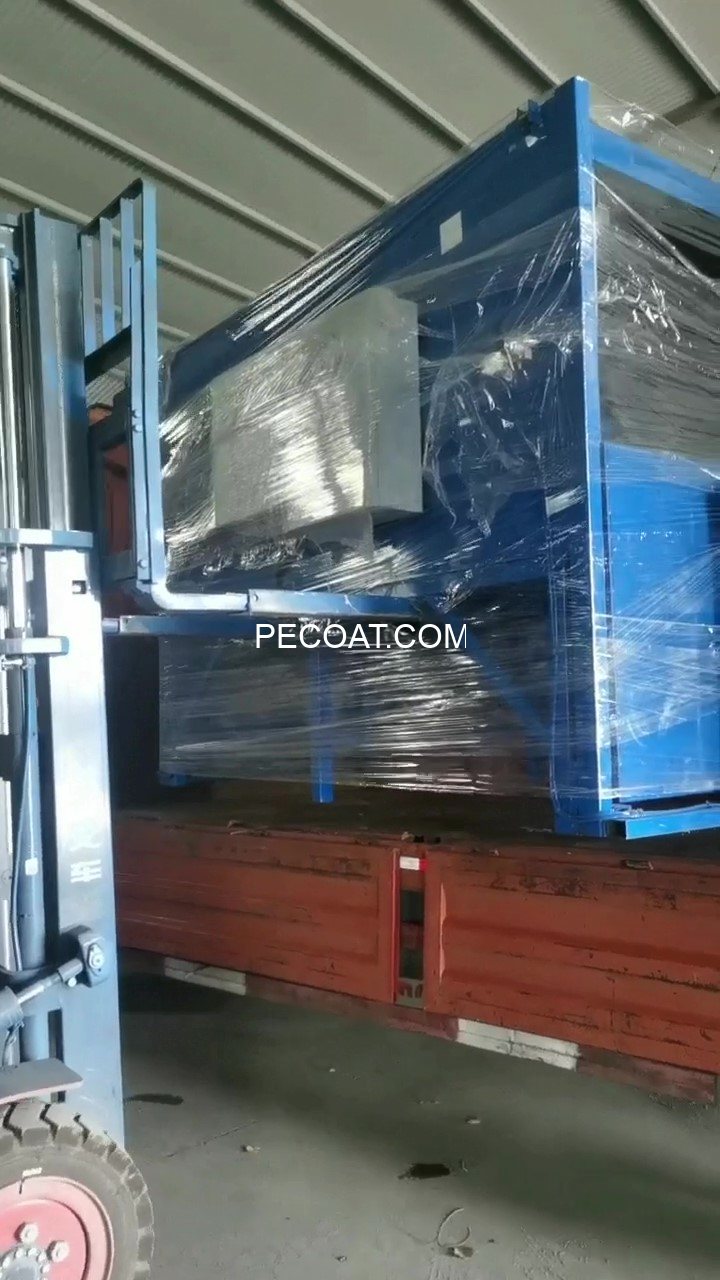

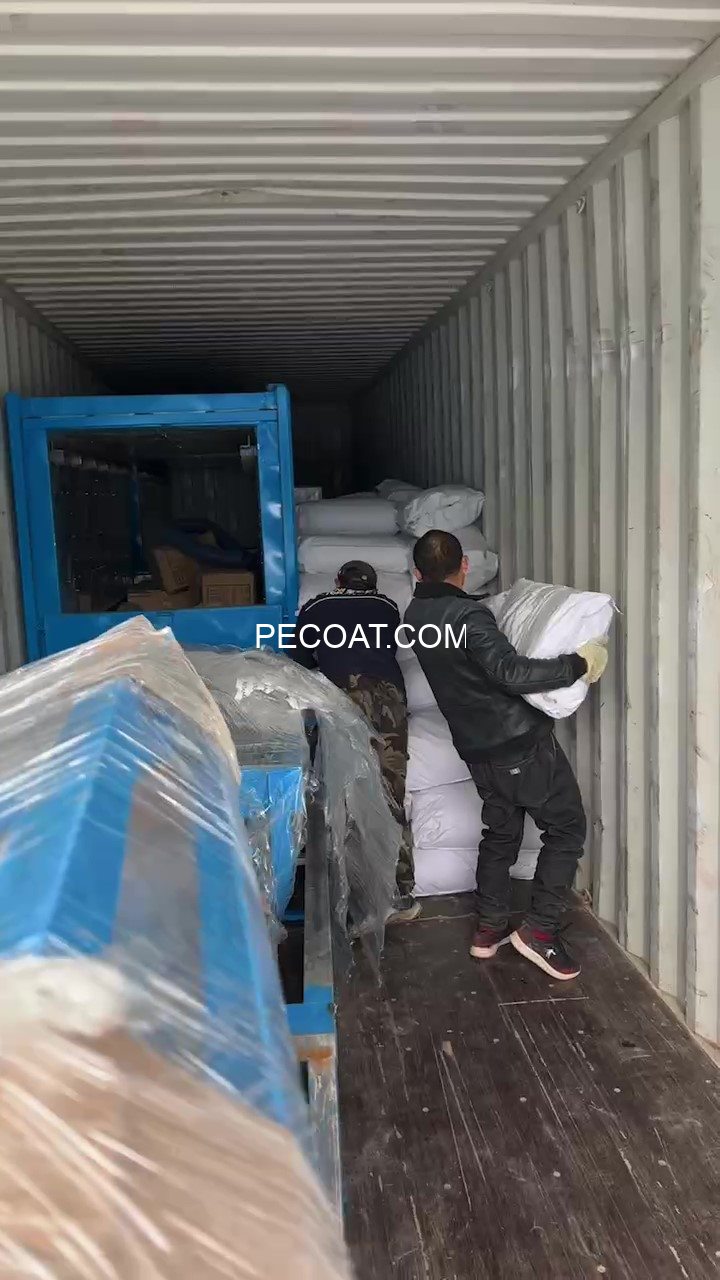

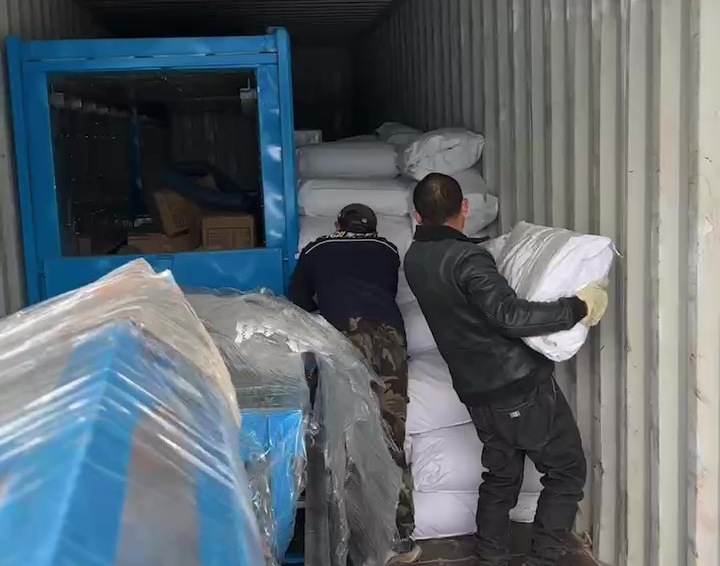

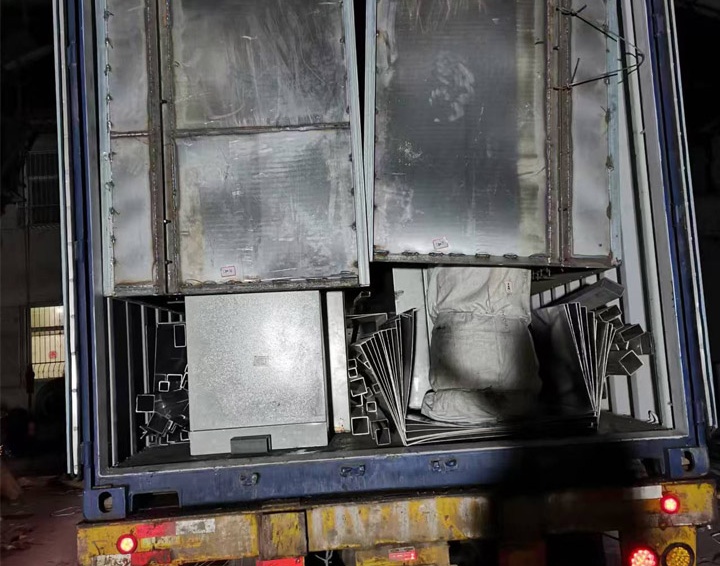

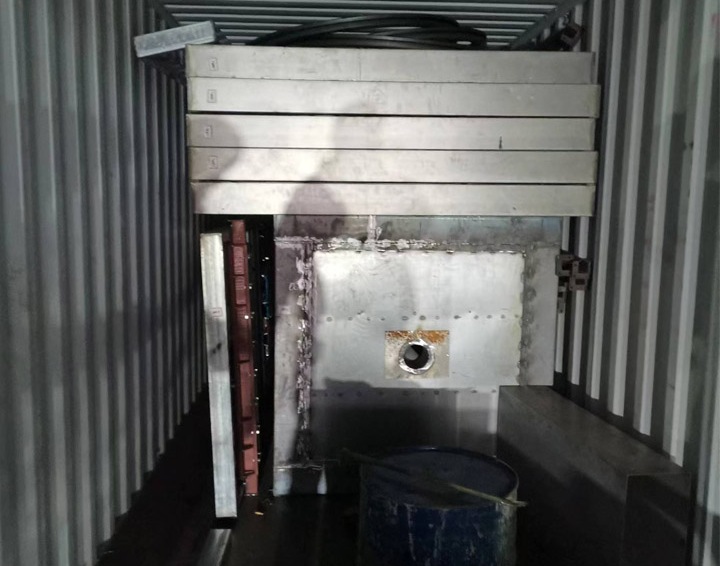

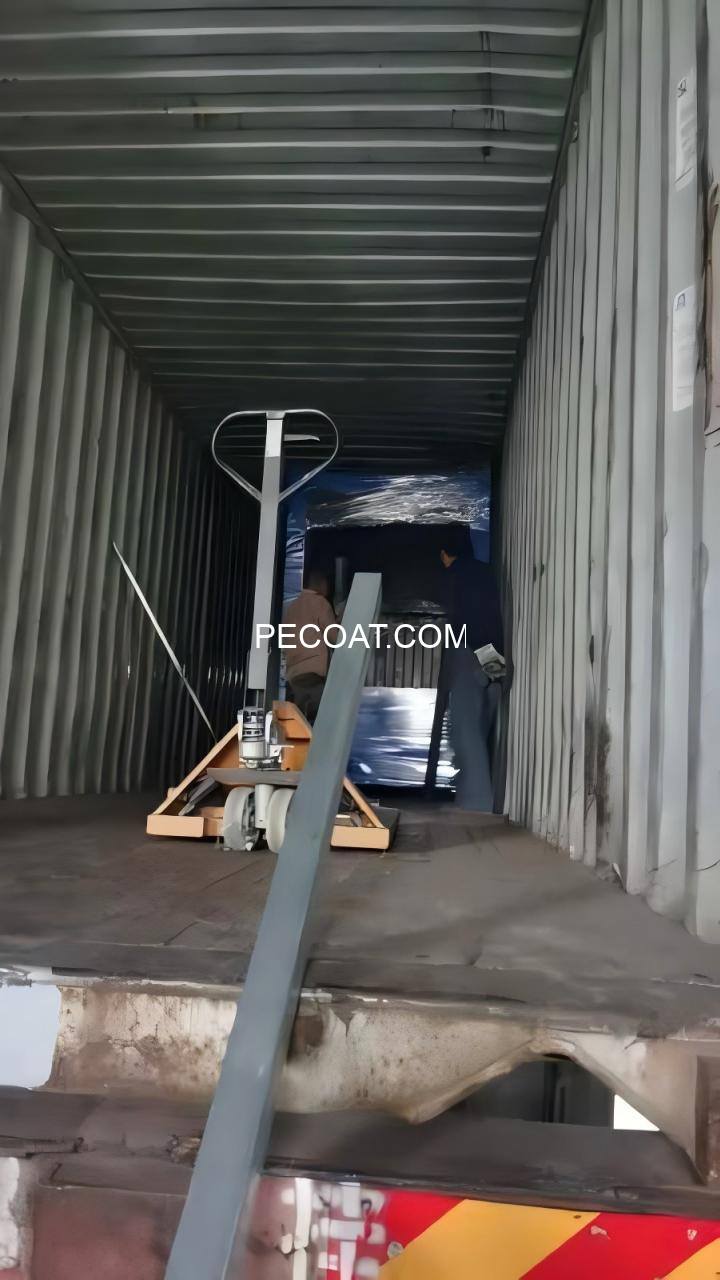

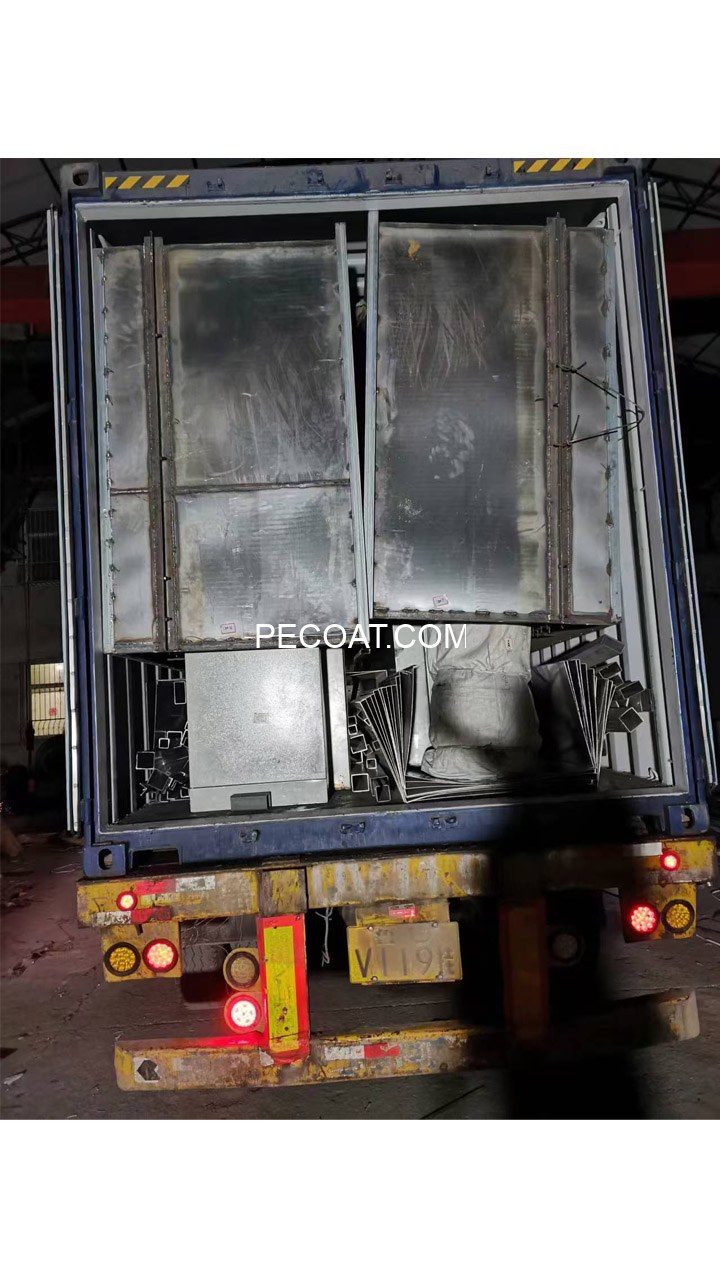

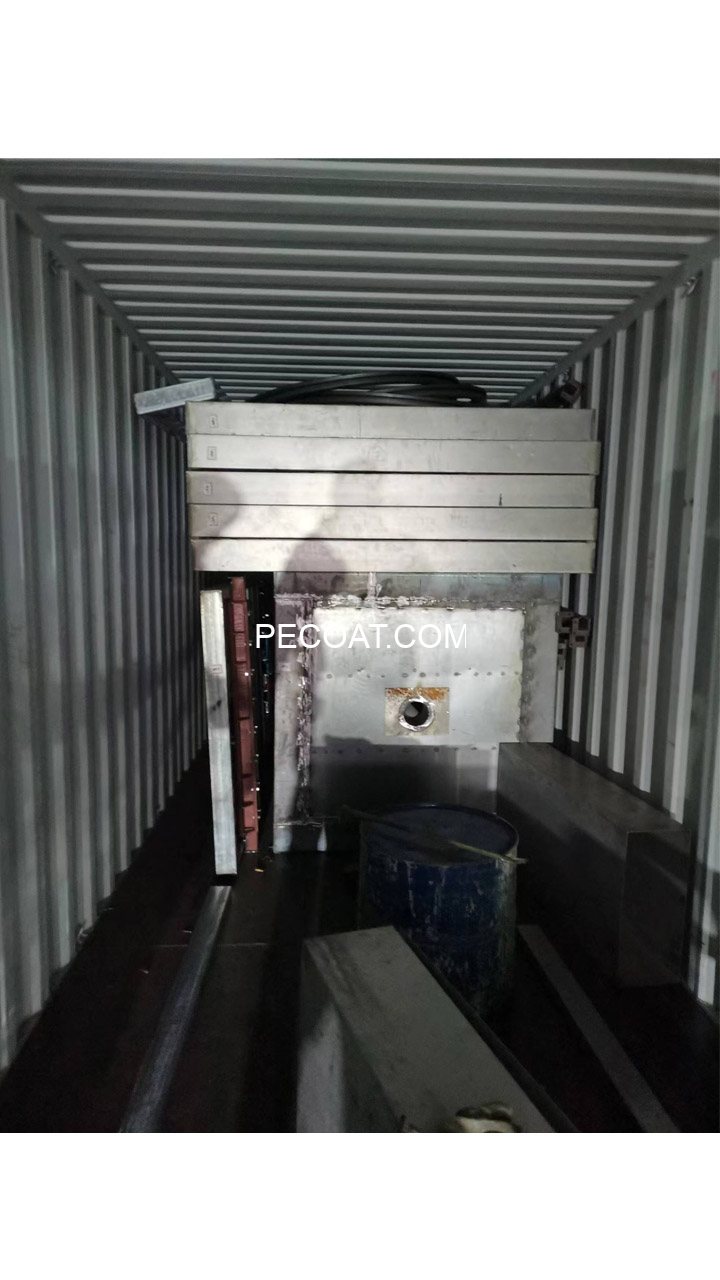

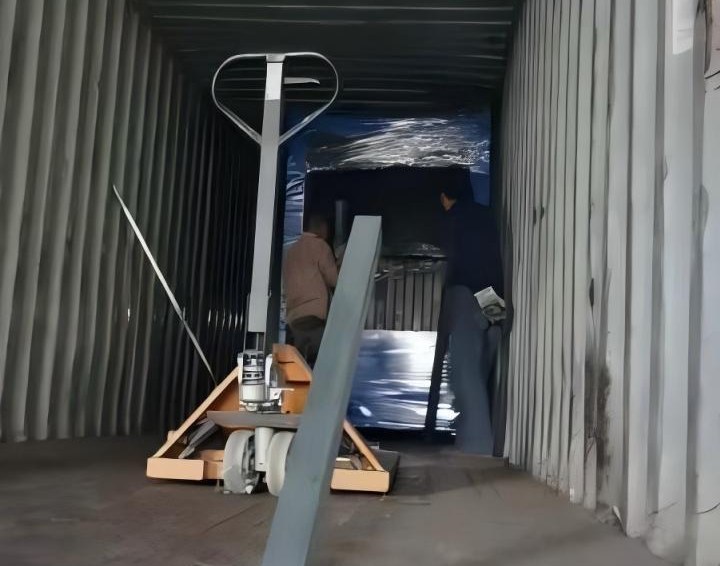

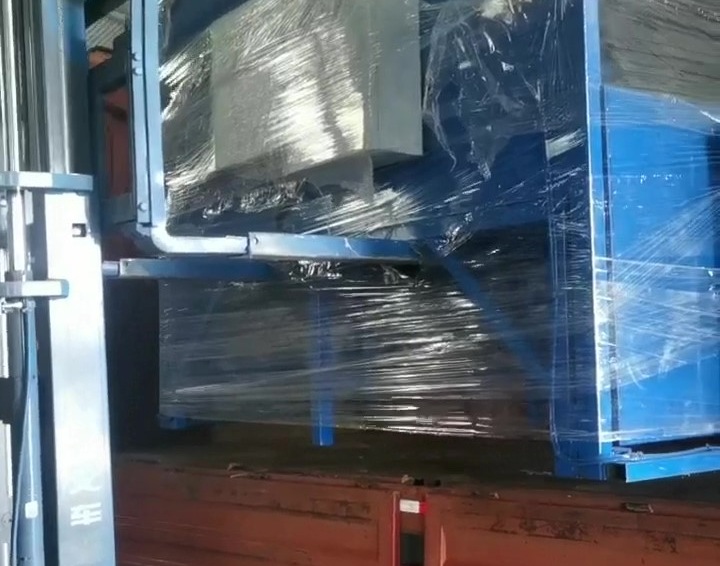

For semi-automatic and full automatic type, the whole production line will be disassembled and loaded into a 40-foot container, and then shipped to the port of the buyer’s country.
At the same time, in order to save freight costs and make full use of the space in the container, most buyers usually put in other goods, such as several tons of PECOAT thermoplastic powder or products of other companies.
Installation
For manual and semi-automatic types, the equipment isn’t complicated and the buyers usually can install it on their own. Our engineer team will give really detailed installation instructions and can do video guidance if needed.
For the fully automatic ones, the system is a bit more complex. But the buyers can still install it by following our detailed instructions. We can also offer installation at the customer’s site, but it’s not free. The buyers need to pay for related air tickets, accommodation costs, and additionally US$100 allowance per day per person.
Warranty
The warranty period is one year. During this period, non-artificially damaged parts will be replaced free of charge.
After the warranty period, replacement parts require payment of the cost of the parts and transportation costs.
Our equipment can usually work for at least 10 years in the optimal condition. At all times, technical services and support will be provided.
This question is for the fully automatic type. Yes, the speed of conveyor chain can be adjusted, but correspondingly, the output capacity will also change.
This question is for semi-automatic type and fully automatic type. Yes, the height of the lifting system can be adjusted. Different height of workpiece need different working distance, that is why the lifting height is required to adjust.
This question is for semi-automatic type and fully automatic type. Yes, the speed of the lifting system can be adjusted. The speed of dipping powder has a great influence on the thickness of the coating.
Additional information
