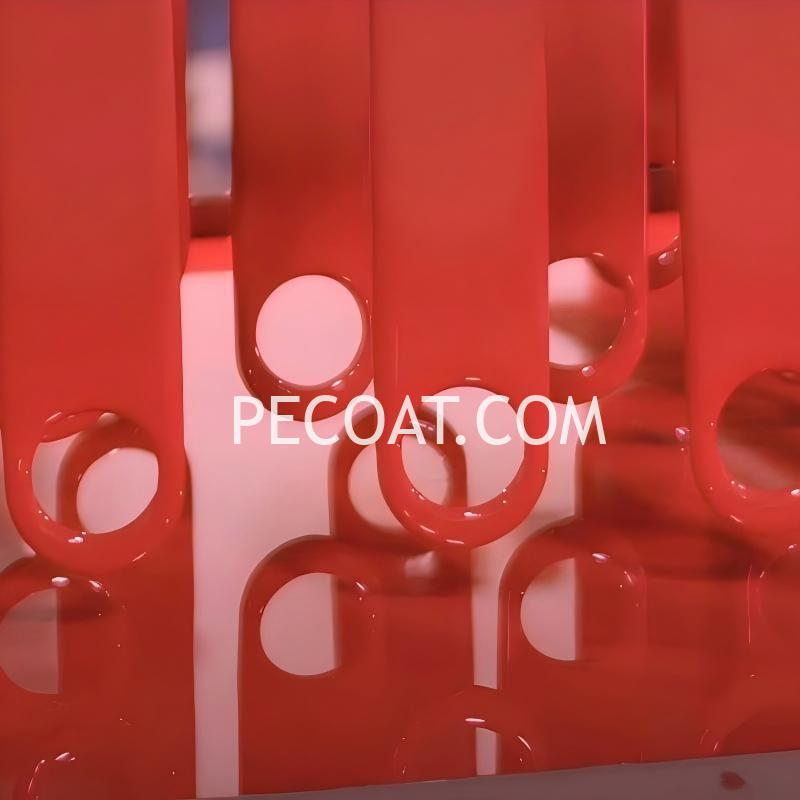

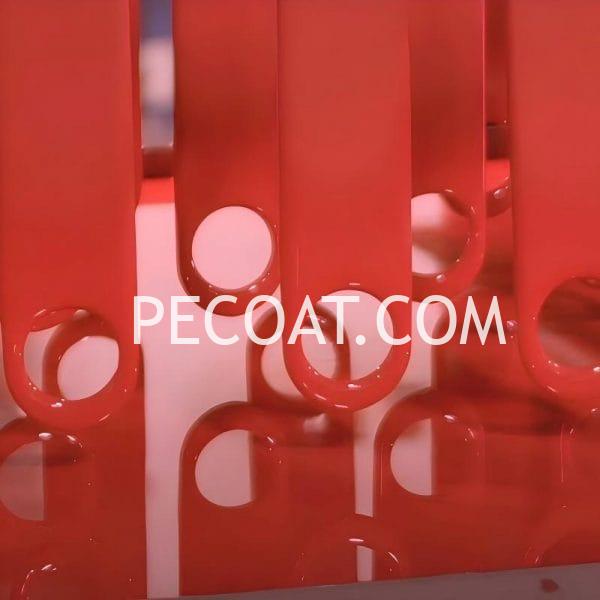

PVC Plastisol Liquid for Dip Coating And Dip Moulding

(1 customer review)

$4.00

PECOAT® PVC Plastisol Liquid is a high-performance coating material mainly made from polyvinyl chloride (PVC) and refined through multiple processes. It has a wide range of applications in numerous fields in dip coating and dip moulding process.

  • Color: RAL color, Custom Colors
  • MOQ: 1 Ton
  • Production time: 3-5 days
  • Sample: Available

Description

PECOAT® PVC Plastisol Liquid is a high-performance coating material mainly made from polyvinyl chloride (PVC) and refined through multiple processes. It has a wide range of applications in numerous fields.

Choosing the Best PVC Dip Coating Supplier Key Considerations
PECOAT® PVC Dip Coatings Plastisol

Product Features

  1. Rich Color and Surface Effects: It offers a broad color selection and various surface finishes, including hard smooth, soft smooth, semi – gloss, matte, soft sandy, shiny transparent, anti – slip, and glow – in – the – dark surfaces. Custom colors can be matched according to RAL color cards, Pantone color cards, or customer – provided color samples.
  2. Excellent Coating Performance: It has outstanding resistance to low temperature, impact, wear, humidity, salt spray, tension, acids and alkalis, aging, high voltage, chemicals, and weather. It is not prone to cracking even when used outdoors. Moreover, it has excellent electrical insulation properties and can maintain its characteristics even when immersed in a saltwater solution. It also features good flexibility, high tensile strength, and elongation at break.
  3. Environmentally Friendly and Safe: It is free from toxic and heavy – metal ions, has antibacterial properties, and its raw materials are recyclable. During the production process, the manufacturing conditions are mild, and almost no industrial waste is generated. The thickness of the coating can be controlled.
PVC Plastisol Liquid Dip Coatings
PECOAT® PVC Plastisol Liquid for Dip Coatings

Application Areas

  1. Hardware Tools: Widely used for tool handles such as wrenches, pipe pliers, needle – nose pliers, etc., providing a comfortable grip and protection.
  2. Fitness Equipment: For handles of fitness equipment like dumbbells and pull – up bars, enhancing grip stability and improving the user experience.
  3. Electromechanical Products: Applied to power tool accessories, fan accessories, etc., for insulation and protection; also used in automotive interior decoration to improve aesthetics and durability.
  4. Architectural Hardware: Used on valve handles, door locks, window handles, etc., not only providing decorative effects but also enhancing durability.
  5. Daily – Used Hardware: Such as clothes hangers, chains, trash bins, etc., improving the product texture and service life.
  6. Plastic Sleeves: Medical – grade plastic sleeves, long plastic sleeves, and colored sleeves to meet the needs of different industries.

Usage Method

  1. Pretreatment: Thoroughly pretreat the workpiece to remove oil and rust.
  2. Prepare PVC Plastisol: Pour the liquid PVC plastisol into the tank 3 hours in advance, let it stand still, and remove the surface bubbles.
  3. Preheat: Preheat the workpiece to 230 – 250°C for 2 – 3 minutes.
  4. Dip – Coating: Immerse the preheated workpiece into the plastisol and observe the thickness and flow of the coating to ensure a proper state.
  5. Post – Heating: Put the workpiece into the curing oven and heat it at 200°C for 2 – 3 minutes.
  6. Cooling: Take out the workpiece for cooling.
pvc plastisol caps sleeves covers for dip mould machine
PECOAT® PVC Plastisol Liquid for dip moulding caps

Packaging Information

It is packaged in high – quality iron drums. Each drum contains 250KG, and 4 drums are placed on one pallet. The iron drums have excellent mechanical properties, high pressure resistance, strong ductility, and are not easily damaged. They can effectively protect the product during transportation and storage, and are reusable and recyclable.

Frequently Asked Questions

  1. Price: This PVC plastisol liquid price is determined based on factors such as the product to be coated, the required color, surface effect, hardness requirements (usually Shore C 60° by default), and other special performance requirements (such as anti – UV, anti – static, high insulation, etc.).
  2. Minimum Order Quantity: One drum (250KG).
  3. Delivery Time: 3 – 5 days after payment.
  4. Free Sample: Provide 2.5Kg of PVC plastisol and one coated plate, but the customer needs to bear the shipping cost.

Additional information

Color

Custom Color, RAL Color

Material

Polyvinyl chloride

Country of Origin

China

Brand

PECOAT®

Production Time

7-10 days

Use

Dip coating and dip moulding
